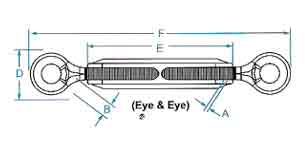

Part Number |
Dim A
mm |
Dim A
mm |
Dim C
mm |
Dim D
mm |
Dim E
mm |
Dim F mm |
Load
Limit |
Min. |
Max. |
WTUR 025 |
M5 |
3/16" |
8.00 |
16.00 |
80.00 |
118 |
175 |
250.00 |
WTUR 026 |
M6 |
1/4" |
10.00 |
20.00 |
80.00 |
130 |
193 |
350.00 |
WTUR 027 |
M8 |
5/16" |
11.00 |
22.00 |
105.00 |
158 |
240 |
660.00 |
WTUR 028 |
M10 |
3/8" |
14.00 |
27.00 |
125.00 |
192 |
289 |
1035.00 |
WTUR 029 |
M11 |
7/16" |
15.00 |
29.00 |
135.00 |
206 |
310 |
1275.00 |
WTUR 030 |
M12 |
1/2" |
17.00 |
33.00 |
140.00 |
226 |
332 |
1520.00 |
WTUR 031 |
M14 |
9/16" |
18.00 |
35.00 |
170.00 |
256 |
386 |
2070.00 |
WTUR 032 |
M16 |
5/8" |
23.00 |
46.00 |
190.00 |
296 |
435 |
2840.00 |
WTUR 033 |
M18 |
11/16" |
28.00 |
59.00 |
205.00 |
358 |
512 |
3655.00 |
WTUR 034 |
M20 |
3/4" |
28.00 |
59.00 |
220.00 |
358 |
522 |
4690.00 |
WTUR 035 |
M22 |
7/8" |
34.00 |
70.00 |
240.00 |
400 |
579 |
5790.00 |
WTUR 036 |
M24 |
1" |
36.00 |
76.00 |
260.00 |
436 |
628 |
6740.00 |
WTUR 037 |
M27 |
1-1/8" |
38.00 |
82.00 |
270.00 |
474 |
668 |
8810.00 |
WTUR 038 |
M33 |
1-1/4" |
41.00 |
89.00 |
290.00 |
516 |
712 |
13300.00 |
|
